Custom Gearbox for Agricultural Applications

• Posted on Terry McCormick
• in news
• on February 4, 2020
• Comments Off on Custom Gearbox for Agricultural Applications

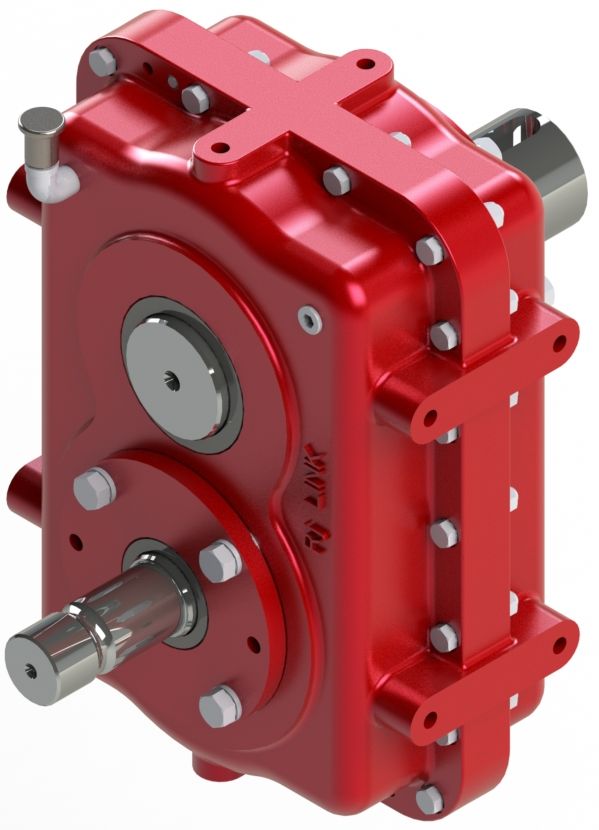

Custom Gearbox

Features:  Various input and output shaft configurations, tapered shaft and agricultural PTO connections, SAE bell housings with clutch, rubber block drive or flange connections.

Typical Applications:  Farm Waste Pumping, Feed Lot Grain Handling System, Leaf Vac System.

Specifications:

Ratio:  1:1 to 2:1      1:1 to 1:2

Max HP:  300

Input Speed (rpm):  1,000-2,100

Overall Size:  16.5 x 12.5 x 8

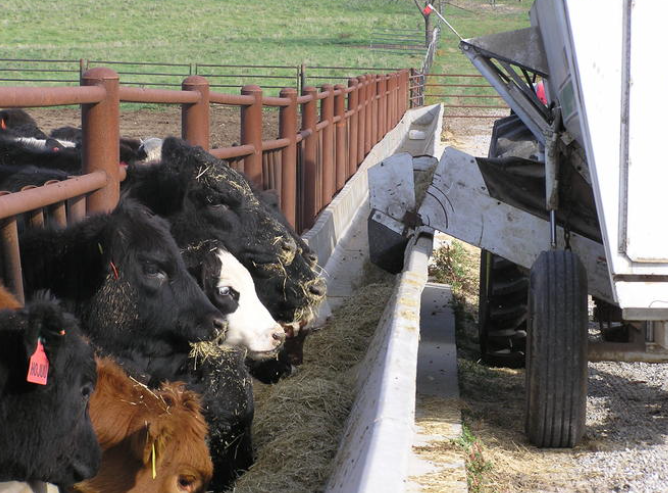

Feed lot handling system
