Gearbox ideal for PTO applications

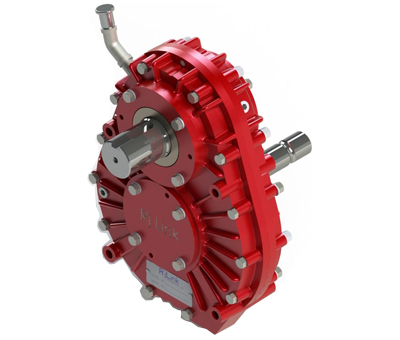

Speed Increasers: Model D101

Features include an aluminum housing, numerous input and output shaft configurations including straight shaft with key, tapered shaft and agricultural PTO connection including 540 RPM or 1000 RPM, auxiliary hydraulic pump input or output, anti-engine rotation.

Typical Applications

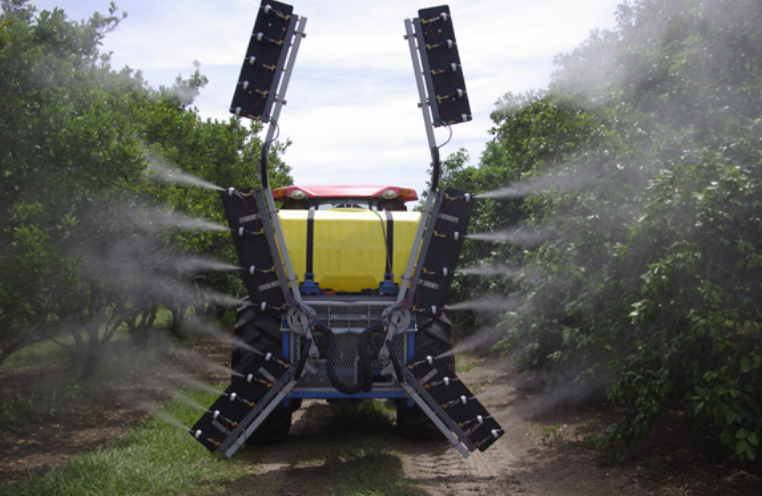

Orchard Sprayer

Specifications

  • Ratios:1 : 1.19 through 1 : 4.5
  • Rotation:Anti-Engine
  • Max Horsepower:125 HP
  • Center Distance:6.0″
  • Overall Size:16.5″ H x 12.4″ W x 5.5″ DP
  • Weight:60 lbs approx.
