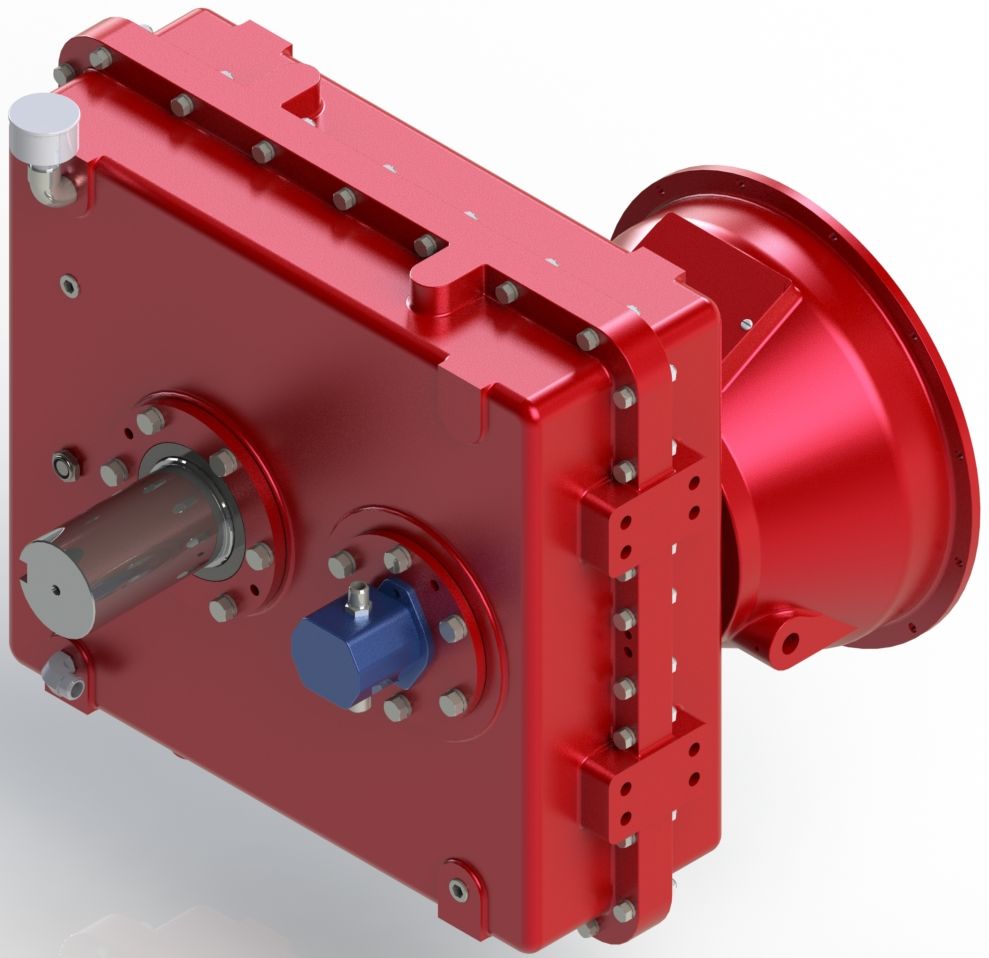

Speed Increasers: Model D281

Gearbox Model D281 features a cast housing and ant-engine ratios up to 1 : 5.

Typical Applications

Pumping

Specifications

  • Ratios:1 : 5
  • Rotation: AntiEngine
  • Max Horsepower:600 HP
  • Center Distance:12.2″
  • Overall Size: 31″ H x 34.5″ W
  • Weight: Typical 1,550 lbs approx. with SP314 clutch.

Related Images

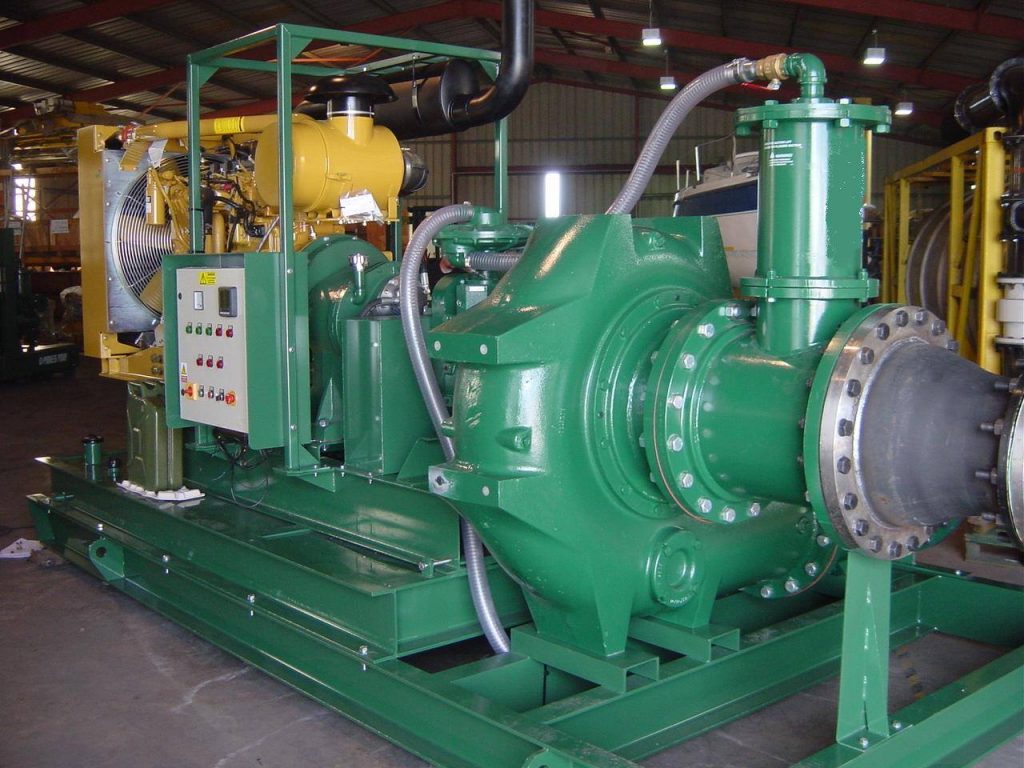

pumping-pictures

Custom Gearbox -Speed Increaser – Pumping Equipment
