Transfer Cases

Transfer Cases

Rj Link Transfer Cases are manufactured in numerous sizes for a variety of products and markets. Our custom built gearboxes are designed for mobile or stationary applications. While most use tapered roller bearings, helical gears, customer application and expectations enable us to customize components.

Features include:

  • Aluminum and Grey Iron and Ductile Iron Housings
  • Gears CL8 –CL12 (Application Dependent)
  • Auxiliary Lubrication Pumps and Heat Exchangers
  • Various Input and Output Shaft Configurations
  • Many size ranges and rotation options
  • Stationary and vehicular applications
  • Typical HP Range 75 through 1050
  • Mounting Options (Direct Mount, Remote Mount, Engine Mount)

Don’t see what you need? Contact us.


aModel D169

Features include

A cast ductile housing with flexible mounting connections, a variety of ratios depending on your application, engine or anti-engine rotation, specified in many different applications.

  • Specifications Ratios: 1 : 1 through 3 : 1
  • Rotation: Engine/Anti-Engine
  • Max Horsepower: 350 HP

bModel D170

Features include

A cast ductile housing with flexible mounting, connections include SAE bell housings or flange connections, a variety of ratios depending on your application, engine or anti-engine rotation. The robust construction is well suited for Oil & Gas applications.

  • Specifications Ratios: 1.51 : 1 through 1.81 : 1
  • Rotation: Engine/Anti-Engine Max …

cModel D181

Features include

A ductile iron housing with custom integrated mounting lugs, multiple outputs, and a compact size.

  • Specifications Ratios: 1.03 : 1
  • Rotation: Anti-Engine
  • Max Horsepower: 200 HP

dModel D218

Features include

Precision ground gears mated to an aluminum housing with stringent noise and space requirements, this engine rotation gearbox is an example of extensive development to meet defined parameters.

  • Specifications Ratios: 1 : 1
  • Rotation: Engine

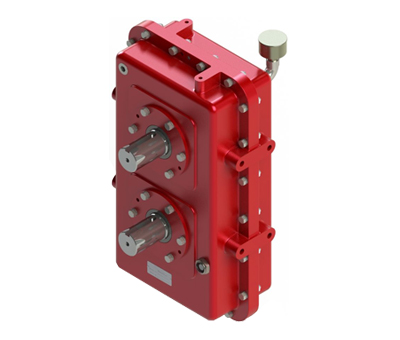

eModel D227
Features include a cast ductile housing with flexible mounting options, robust construction, compact design.

fModel D240

Features include

A two-speed design, a cast housing with flexible mounting connections, engine or anti-engine rotation, parallel output shaft design.

  • Specifications Ratios: 1.5 : 1 to 2.0 : 1
  • Rotation: Engine or Anti-Engine
  • Max Horsepower: 900 HP
