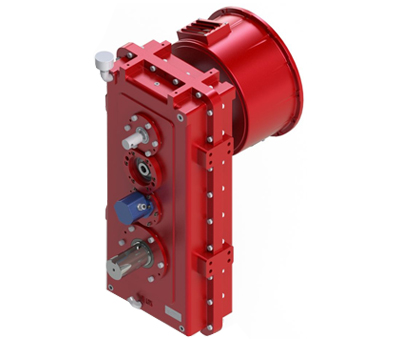

Transfer Case: Model D170

Features include a cast ductile housing with flexible mounting, connections include SAE bell housings or flange connections, a variety of ratios depending on your application, engine or anti-engine rotation. The robust construction is well suited for Oil & Gas applications.

Typical Applications

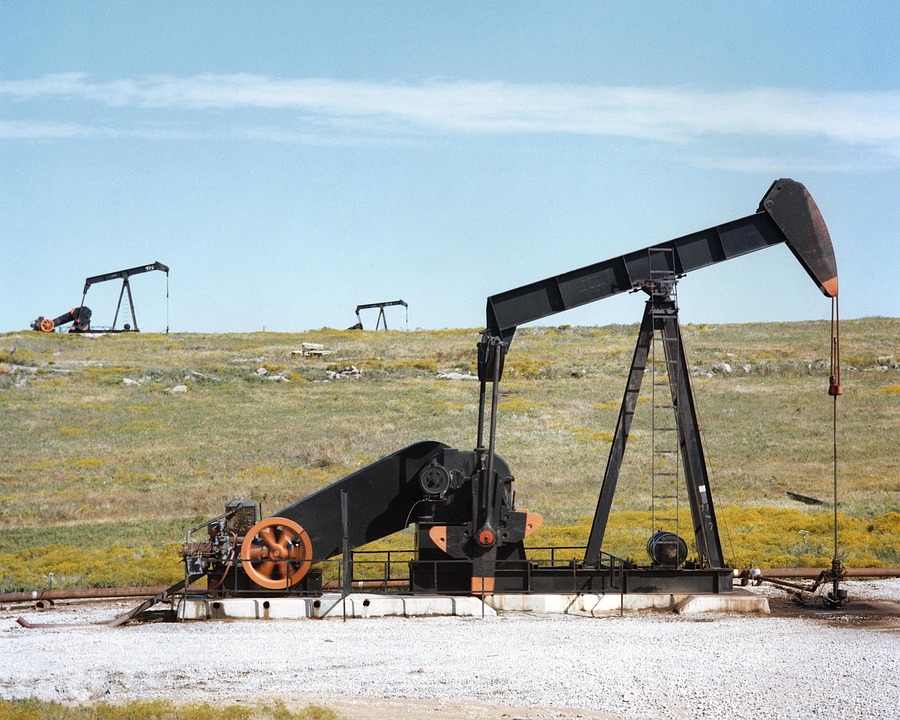

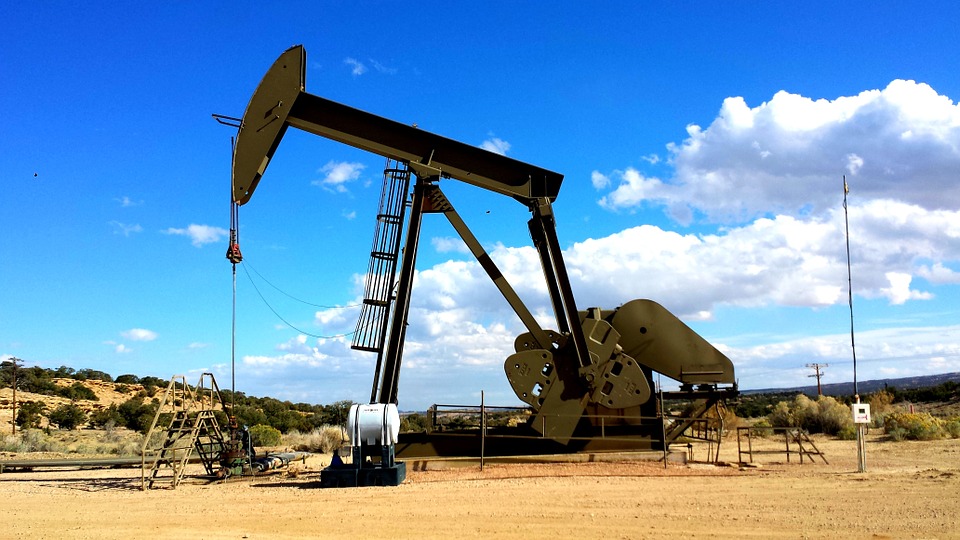

Oil & Gas

Specifications

• Ratios:1.51 : 1 through 1.81 : 1
• Rotation:Engine/Anti-Engine
• Max Horsepower:650 HP
• Center Distance:22.3″
• Overall Size:46″H x 22″W x 31″D
• Weight:1,300 lbs approx.
