Manufacturing Capabilities

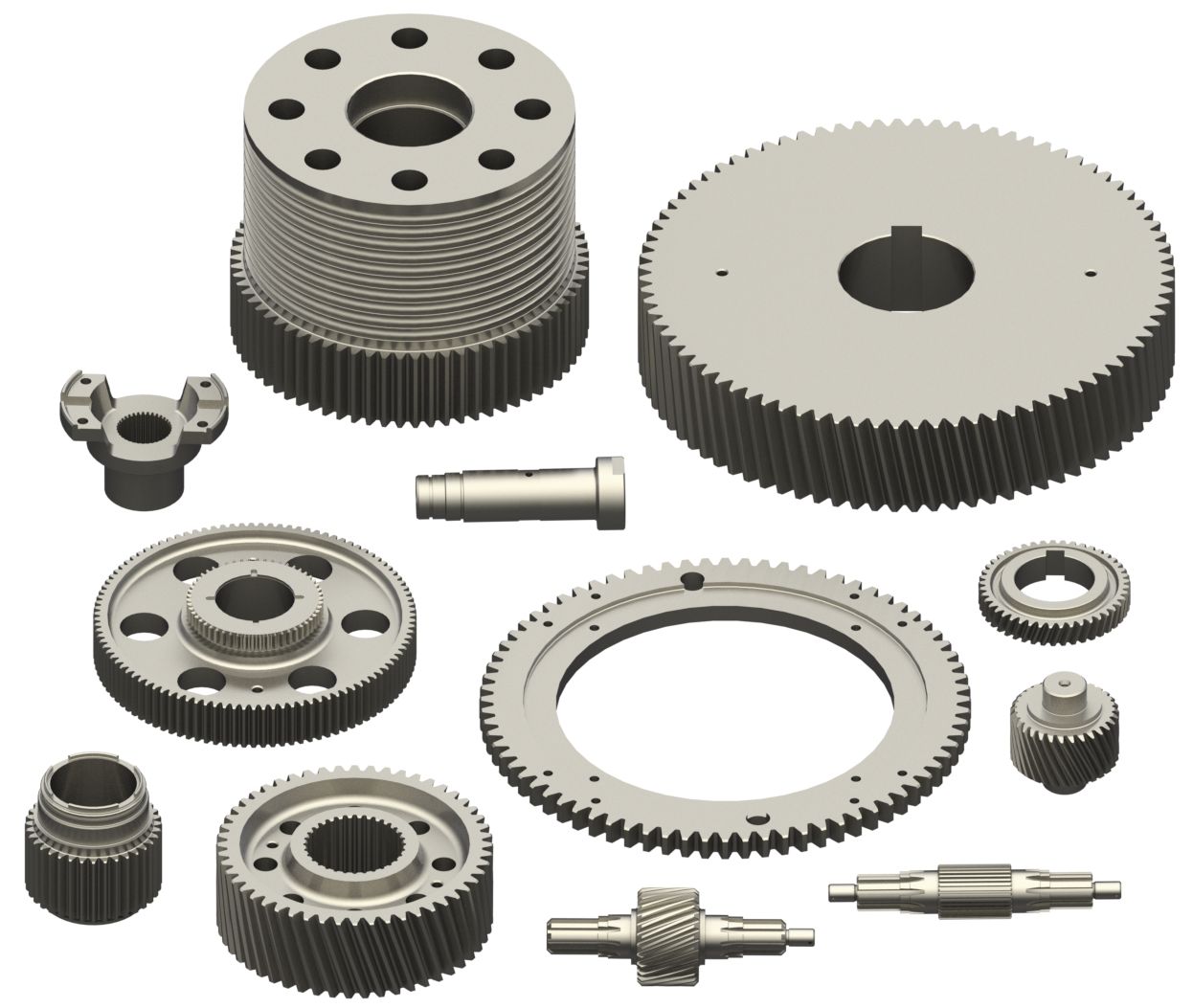

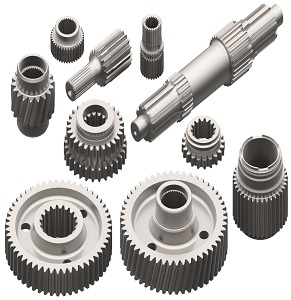

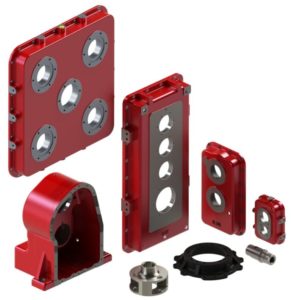

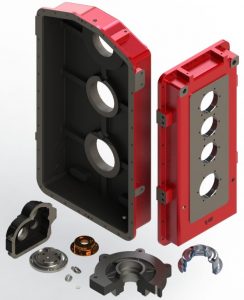

Our manufacturing capabilities range from single piece prototype development to volume precision machining. We manufacture components and assemblies from a variety of raw materials including bar stock, plate stock, forgings and castings. We work with a variety of customer supplied materials including proprietary castings, specialty tubing and unique forgings. We can also provide additional services such as EDI, inspection, bar coding and more.

Contact us now to learn how Rj Link can provide value to your organization.



Below is a more detailed list of our in-house capabilities:

  • Vertical CNC Machining Centers: Max. 59” length, 31.5” width, 23” height
  • Horizontal CNC Machining Center: 25” cube size: Up to 45″ possible on a case by case basis
  • CNC Turning: Max. 24” dia., max. 56” length
  • Broaching: 50 ton & 5 ton, Key min. 125″ and max 1″, Spline dia min .75″ and max 3.855″
  • Hobbing: 39” dia. to 8″ thick, 2.5 DP, stock SAE & metric hobs
  • CNC Crown Hobbing: 39” dia., 4 DP
  • Shaping: 36” dia., 6” max. gear face, 3.5 DP
  • Tooth Pointing/Tooth Rounding: Up to 16” diameter
  • Gear Grinding: Up to 15.74″ diameter. AGMA class 5 per AGMA 2015 inspection standard.  Previously AGMA class 12 per AGMA 2000-A88 standard.
  • Assembly & Test Capabilities

Services Offered:

  • Material Certifications
  • Heat Treat Certifications
  • Inspection Data
  • EDI
  • Solidworks Solid Modeling
  • Finite Element Analysis – FEA

Inspection Capabilities:

  • Coordinate Measuring Machine: X-Axis 27”, Y-Axis 40”, Z-Axis 24”
  • CNC Gear Inspection: Dia. 11.5”, length 23.5”, 550 lbs. load
  • 14” Optical Comparator
  • Micrometers: Up to 30”O.D., 36”I.D.
