Specialty Gearboxes

Specialty Gearbox

Specialty Gearboxes

Rj Link Specialty Gearboxes are manufactured for specific applications in conjunction with customer
specifications. Our expertise is a critical component to each application. It enables our customers to focus on core competencies and rely on our Engineering and Manufacturing expertise. Duty cycles, life expectancy and end use are key factors in the design and manufacturing of our Specialty Gearboxes.

Features include:

  • Aluminum and Grey Iron and Ductile Iron Housings
  • Custom Fabrications
  • Gears CL8 –CL12 (Application Dependent)
  • Various Input and Output Shaft Configurations
  • Ratio Ranges from 1.02 : 1 through 15 : 1
  • Variety of Applications
  • Typical HP Range 25 through 1050
  • Many Mounting Options

Don’t see what you need? Contact us.

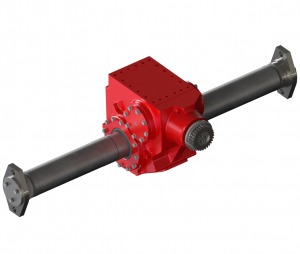

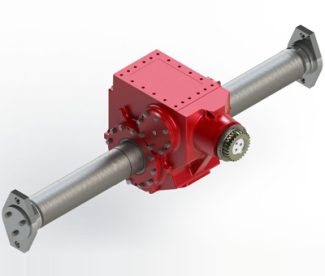

Model D098

Features include:

Precision ground gears, a ductile iron housing, this gearbox is optimized for long life in a rugged application, ongoing research and development have continuously improved this overall design.

  • Specifications Ratios: 2 : 1
  • Horsepower: 350

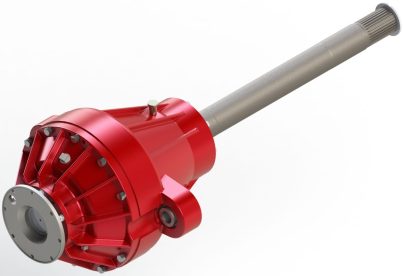

Model D104

Features include

precision gearing and refined housing specifications for ongoing performance enhancements.

  • Specifications Ratios: 5 : 1
  • Horsepower: 600
  • HP Overall Size: 20″D x 48″L

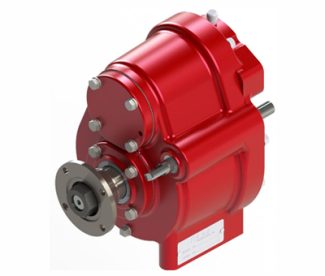

Model D106

Features include

2 speed, shiftable configuration, a ductile iron housing, a variety of ratios.

  • Specifications Ratios: 1 : 1 through 4 : 1
  • Horsepower: 90
  • HP Center of Shafts: 4.6″

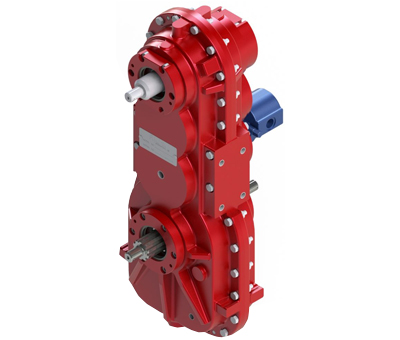

Model D146

Features include

A reinforced aluminum housing, optimized for size and weight, multiple outputs, custom center distance and other unique features.

  • Specifications Type: Reduction Gearbox
  • Ratios: 1.46 : 1
  • Max Horsepower: 130 HP

Model D177

Features include

A fabricated housing, optimized for space, this engine rotation gearbox is ideal for mobile applications where size and function are critical to the overall design.

  • Specifications Ratios: 5.1 : 1
  • Rotation: Engine
  • Max Horsepower: 400 HP
  • Center Distance: 10.25″

Model D181

Features include

A ductile iron housing with custom integrated mounting lugs for integrated frame mounting, multiple outputs, and a compact size.

  • Specifications Ratios: 3 : 1
  • Max Horsepower: 250 HP
  • Center Distance: 8″

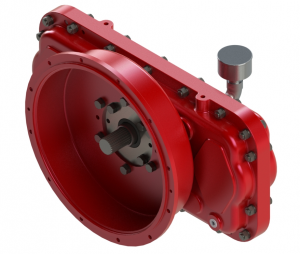

Model D207

Features include

Custom housing size with multiple hydraulic pump pads and engine mounting, custom sized to provide optimal performance within stringent space requirements.

  • Specifications Ratios: 1 : 1
  • Max Horsepower: 125 HP SAE “B” Pad 3

Model D218

Features include

Precision ground gears mated to an aluminum housing with stringent noise and space requirements, this engine rotation gearbox is an example of extensive development to meet defined parameters.

  • Specifications Ratios: 1 : 1
  • Horsepower: 200 HP

Model D224

Features include

Precision ground gears to withstand a unique duty cycle and space requirements.

  • Specifications Ratios: 1 : 1
  • Horsepower: 200 HP

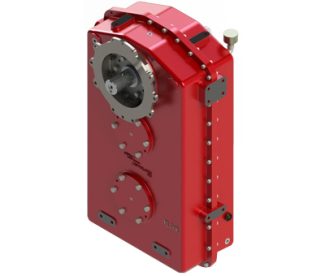

Model D226
This gearbox is custom designed to integrate with a hydraulic clutch, precision ground gears provide increased capacity to meet unique operating conditions and a rigorous duty cycle.

  • Specifications Ratios: 7.14 : 1
  • Horsepower: 1,050 HP
  • Center Distance: 34.5″
