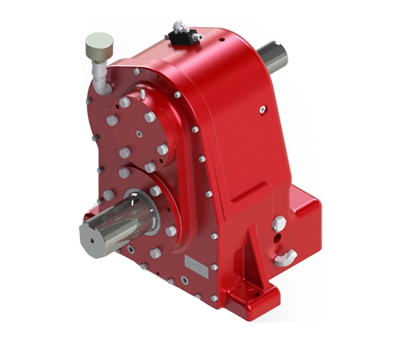

Speed Increaser: Model D254

Features include precision ground gears for increased capacity, a ductile iron housing with the flexible mounting connections, including SAE bell housings with clutches, rubber block drives or flange connections, a variety of ratios depending on your application, engine or anti-engine rotation.

Typical Applications

Pumping

Specifications

  • Ratios:1 : 1.26 through 1 : 2.96
  • Rotation:Engine/Anti-Engine
  • Max Horsepower:800 HP
  • Center Distance:10.25″
  • Overall Size:Varies by configuration
  • Weight:1,100 lbs approx.
