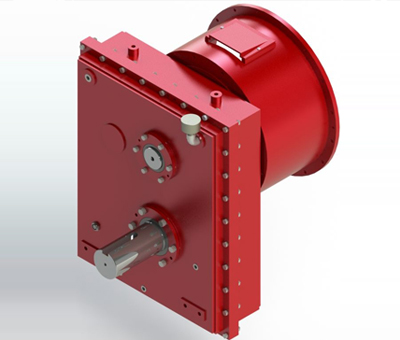

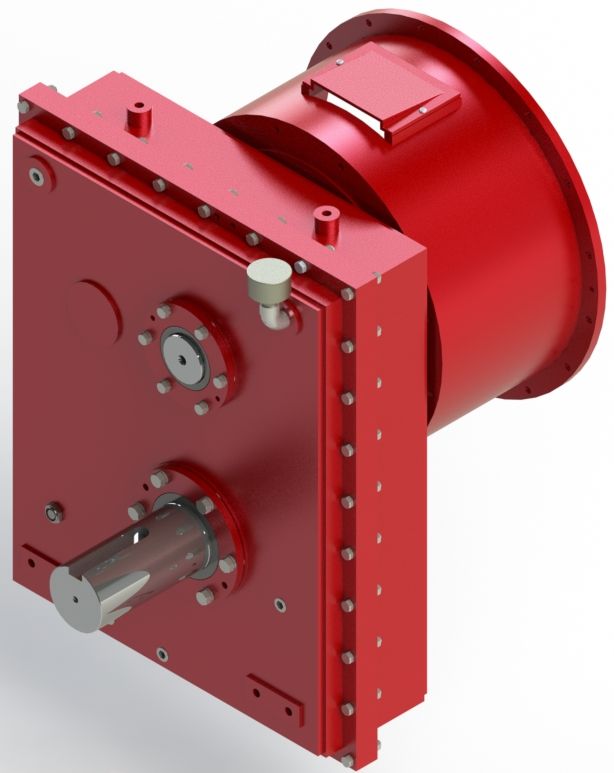

Speed Reducers: Model D204

Features a fabricated gearbox for mounting flexibility.  This gearbox is designed to be mounted and operate at angles up to 30 degrees, engine or anti-engine rotation.

Typical Applications

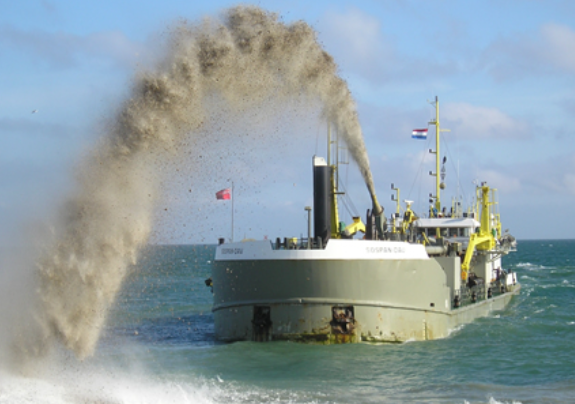

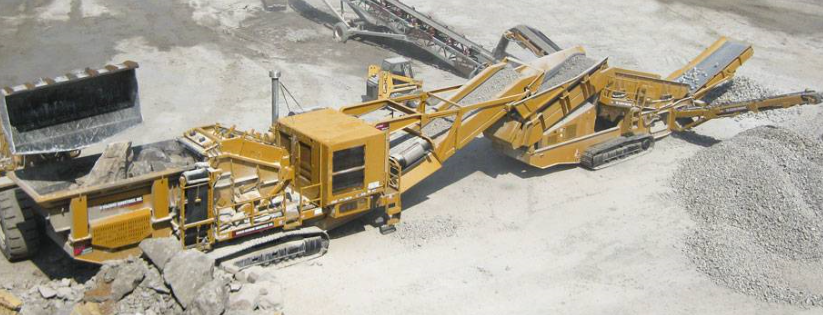

Dredging, Rock Crushing

Specifications

  • Ratios:2 : 1 through 3 : 1
  • Rotation:Engine/Anti-Engine
  • Max Horsepower:675 HP
  • Center Distance:14.4″
  • Overall Size:39″H x 29″W x 31″D
  • Weight:1,400 lbs approx.
