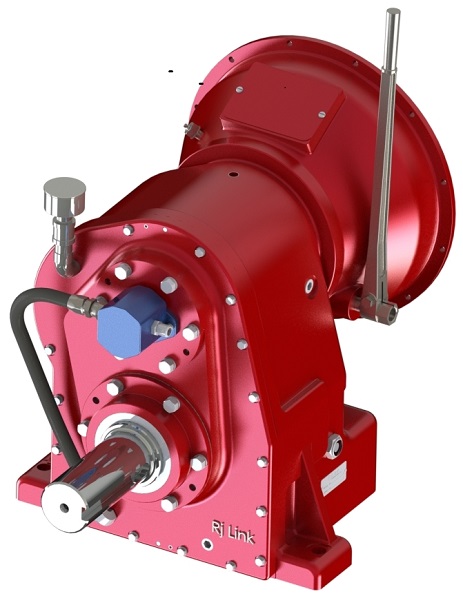

Speed Reducers: Model D244

Features include precision ground gears for increased capacity, a ductile iron housing with the flexible mounting connections including SAE bell housings or flange connections, a variety of ratios depending on your application, engine or anti-engine rotation.

Typical Applications

Air Drilling Piston Booster Pumps, Centrifugal Pumps, Frac Blenders



Specifications

  • Ratios:1.26 : 1 through 2.96 : 1
  • Rotation:Engine/Anti-Engine
  • Max Horsepower:800 HP
  • Center Distance:10.25″
  • Overall Size:Varies by configuration
  • Weight:1,300 lbs approx.
