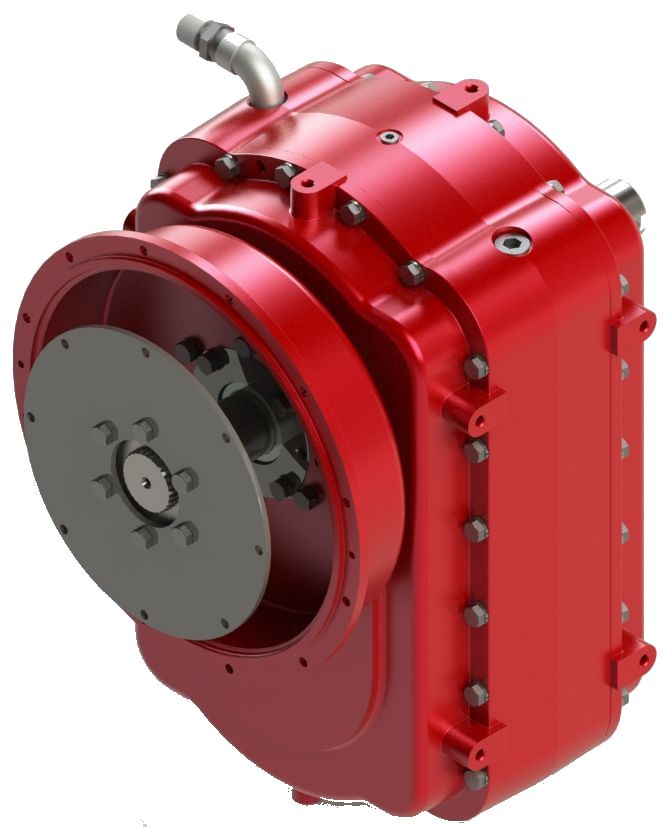

Speed Reducers: Model D290

Features include a ductile iron housing, various input and output shaft configurations including straight shaft with key, tapered shaft and agricultural PTO connections, anti-engine rotation.

Typical Applications

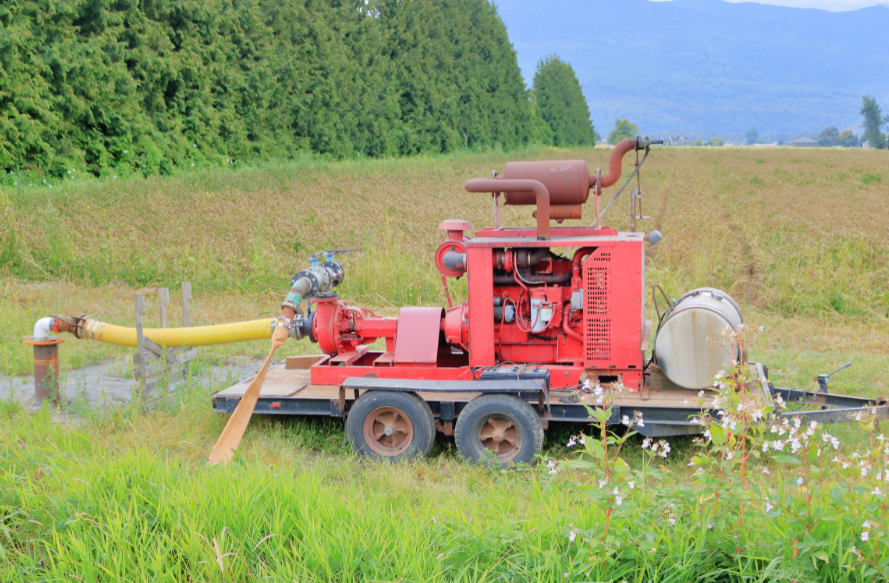

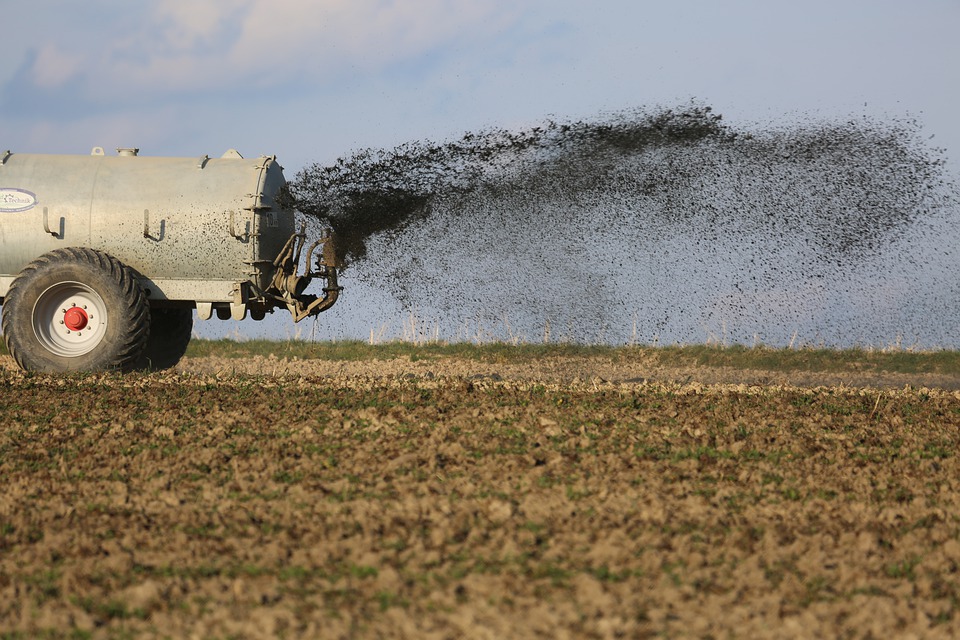

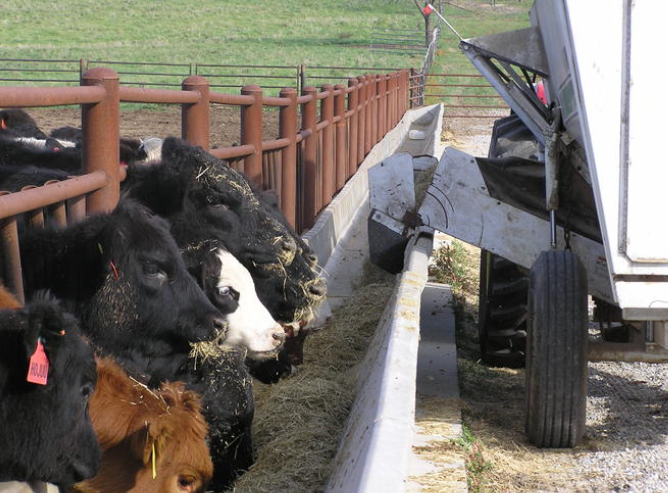

Farm Waste Pumping, Water Pump, Feed Lot Grain Handling, Leaf Vac

Specifications

  • Ratios:Double Reduction up to 12:1, custom configurations available
  • Rotation:Engine
  • Max Horsepower:  150 HP
  • Center Distance:In-Line
  • Overall Size:27″H x 17’W x 10″D
  • Weight:500 lbs
