Speed increaser ideal for centrifugal pump applications

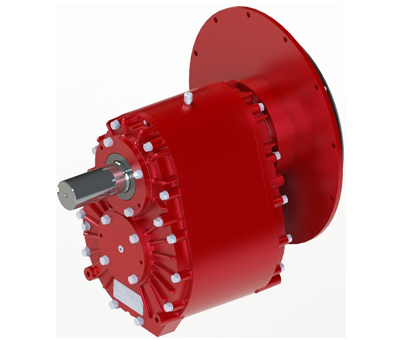

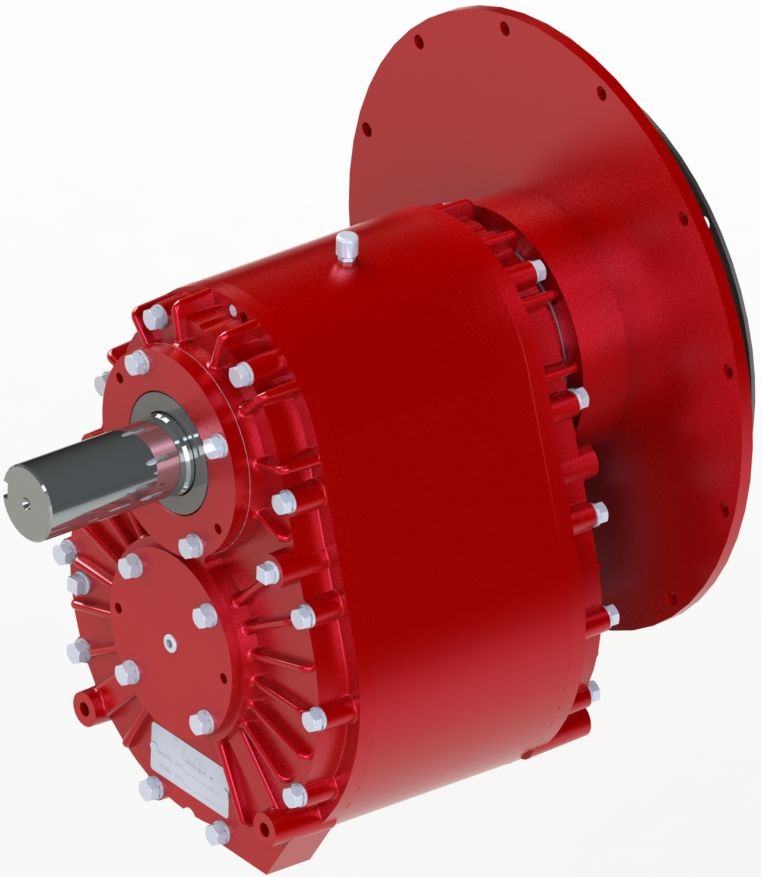

Speed Increaser: Model D201

Features include an aluminum case (similar to the D101) with extra width for additional input and output shaft configurations, increased sump size for higher horsepower and cooling capacity, engine or anti-engine rotation.

Typical Applications

Rotary Screw Compressors, Centrifugal Water Pumps


  • Ratios:1.1 : 1 through 1 : 2.5
  • Rotation:Engine/Anti-Engine
  • Max Horsepower:150 HP
  • Center Distance:6″
  • Overall Size:16.5″H x 12.4″W x 11″D
  • Weight:150 lbs approx.

Related Images

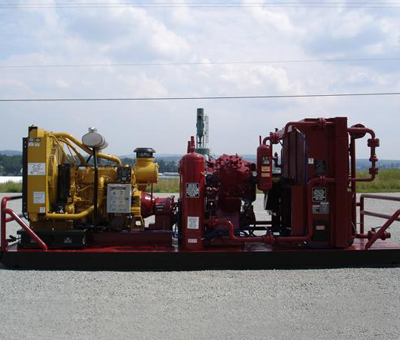

Centrifugal pump
