• Gearboxes in Compressor/Booster Pump Packages

    Gearbox Compressor Booster Pump Packages

    Rj Link Int. continues to see increased inquiries from people in the well service market, with many of them involving the need to go into 1,000 ft. wells.   They are basically pumping nitrogen, water, or slurry into the well to get the oil out.  These are low volume wells that produce approximately 50-125 barrels per day.   Some of the types of equipment that Rj Link gearboxes go into with these types of operations are frac blenders, compressors and booster pumps.

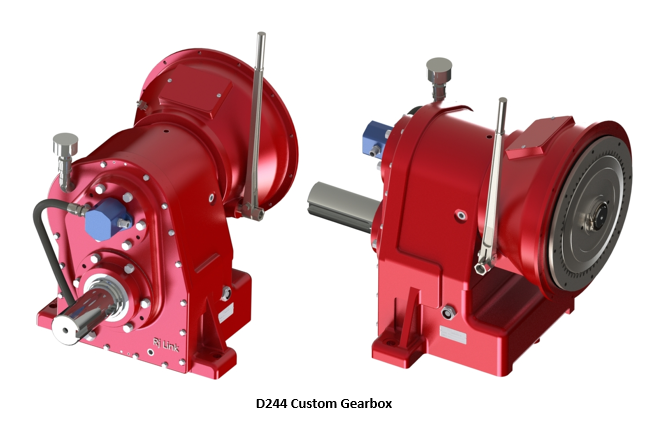

    One of the Rj Link Gearboxes that is being used is these types of applications is the D244. This gearbox has the capacity of 150-750 HP, and has provisions for air shift, manual or hydraulic clutch operations (pneumatic). The gearbox has an integrated lube pump system with up to two additional mounting pads. This is a very cost effective, heavy duty box for these types of applications.



    MODEL D244 FEATURES:

    • Ratios available through 3.0:1 reduction ( Anti-Engine Rotation, and up to 2.5:1 in Engine Rotation
    • Nominal Input Capacity up to 750 HP
    • Input Shaft Configuration: For mechanical clutch, air clutch, flywheel coupling, etc
    • Heavy Duty Ductile Iron Cast Case
    • Hardened Helical Precision – Ground Gears
    • Timken Tapered Roller Bearings
    • Direct Mount to Diesel Engines via Integral Bell Housing
    • Lubrication Pump
    • Weight: Approximately 1200 pounds

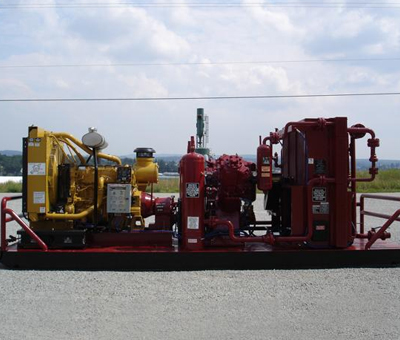

    Compressor Booster Pump Applications

    Compressor Booster Pump Applications
