• Speed Increaser for Mobile Centrifugal Pump

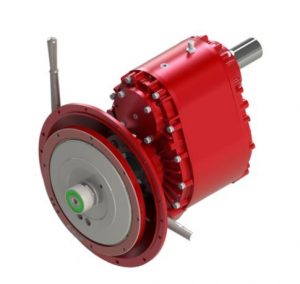

    Speed increasing gearbox

    Speed Increasing Gearbox



    Features: Aluminum case, extra width for additional input and output shaft configurations and positions, increased sump size for higher horsepower and cooling capacity.  SAE bell housing with clutch, rubber block drive or flange connections, in line or parallel shaft design.



    Typical Application:  Rotary Screw Compressor, Centrifugal Water Pump



    Specifications:

    Ratio:  1.1:1 to 2.5:1       1.1:1 to 1:2.5

    Max HP:  150

    Input Speed (rpm):  1,000-6,000

    Overall Size:  16.5 x 12.4 x 16

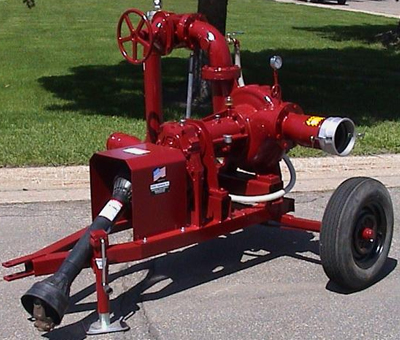

    Mobile centrifugal pump

    Mobile Centrifugal Pump
