• Transfer Case for Biomodal Railcar Mover

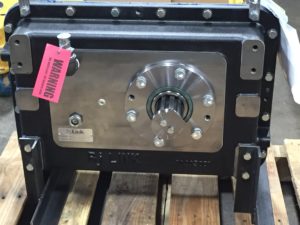

    Rj Link Gearbox in railcar mover

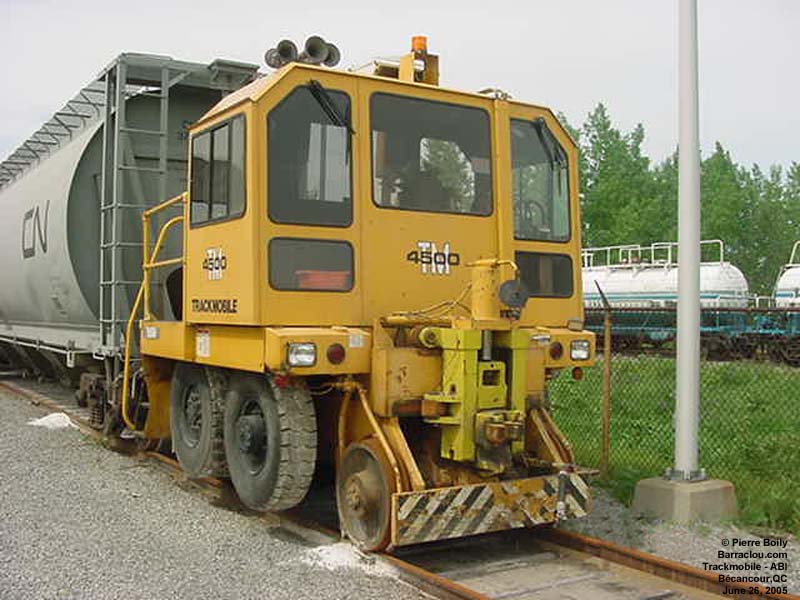

    Railcar mover

    Sixteen years ago Trackmobile, a company whose reputation was built on reliability, high-quality parts, and service, was looking for a supplier to provide a transfer case for a biomodal railcar mover.  It was essential that the transfer case meet the same standards that has always been expected in Trackmobile’s product line.  Rj Link provided a gearbox solution that has played an integral role in the railcar mover’s quality and durability.  The gearbox solution has exceeded Trackmobile’s expectations helping to create a long lasting, reliable, and trustworthy partnership between the two companies.

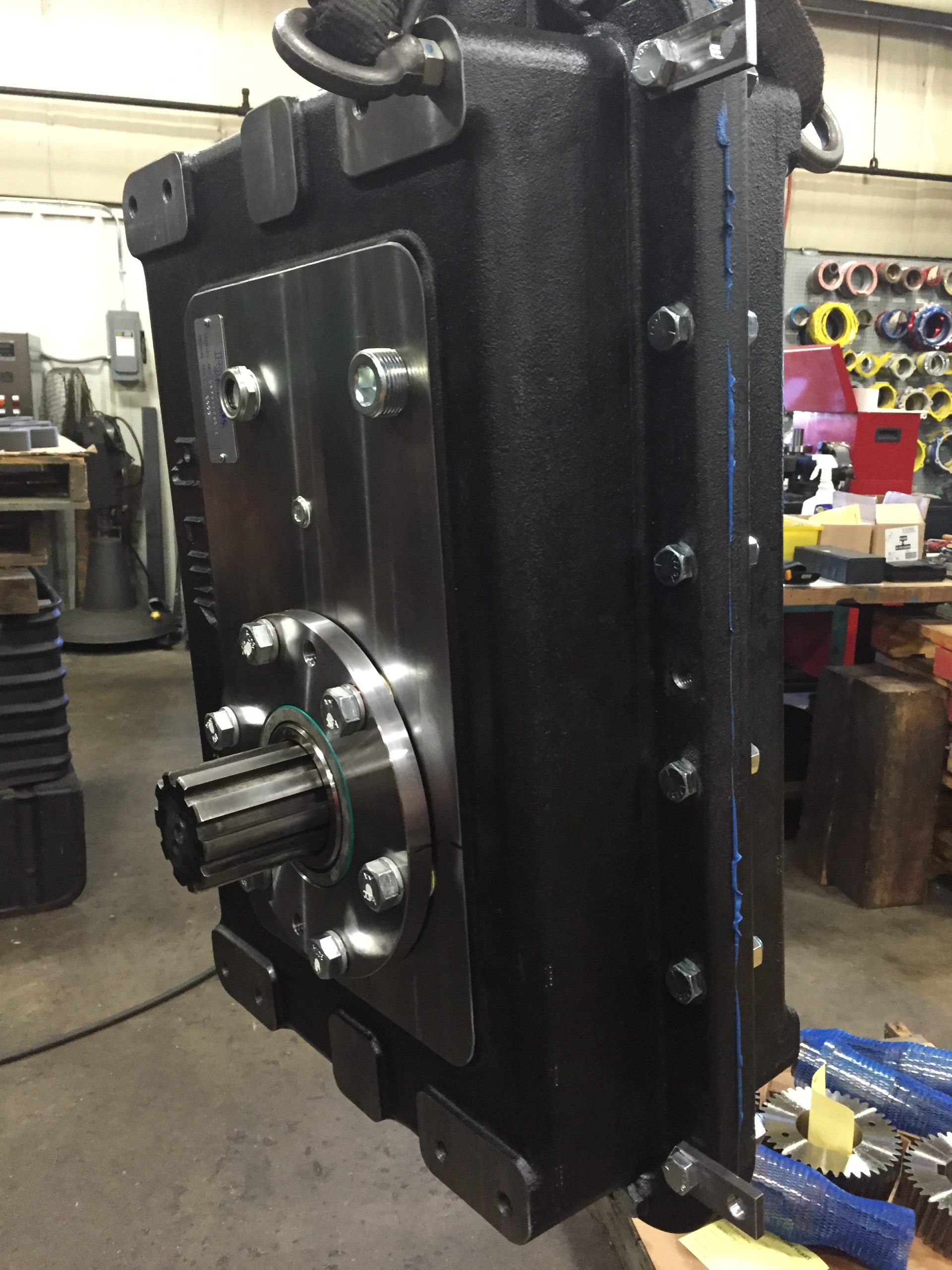

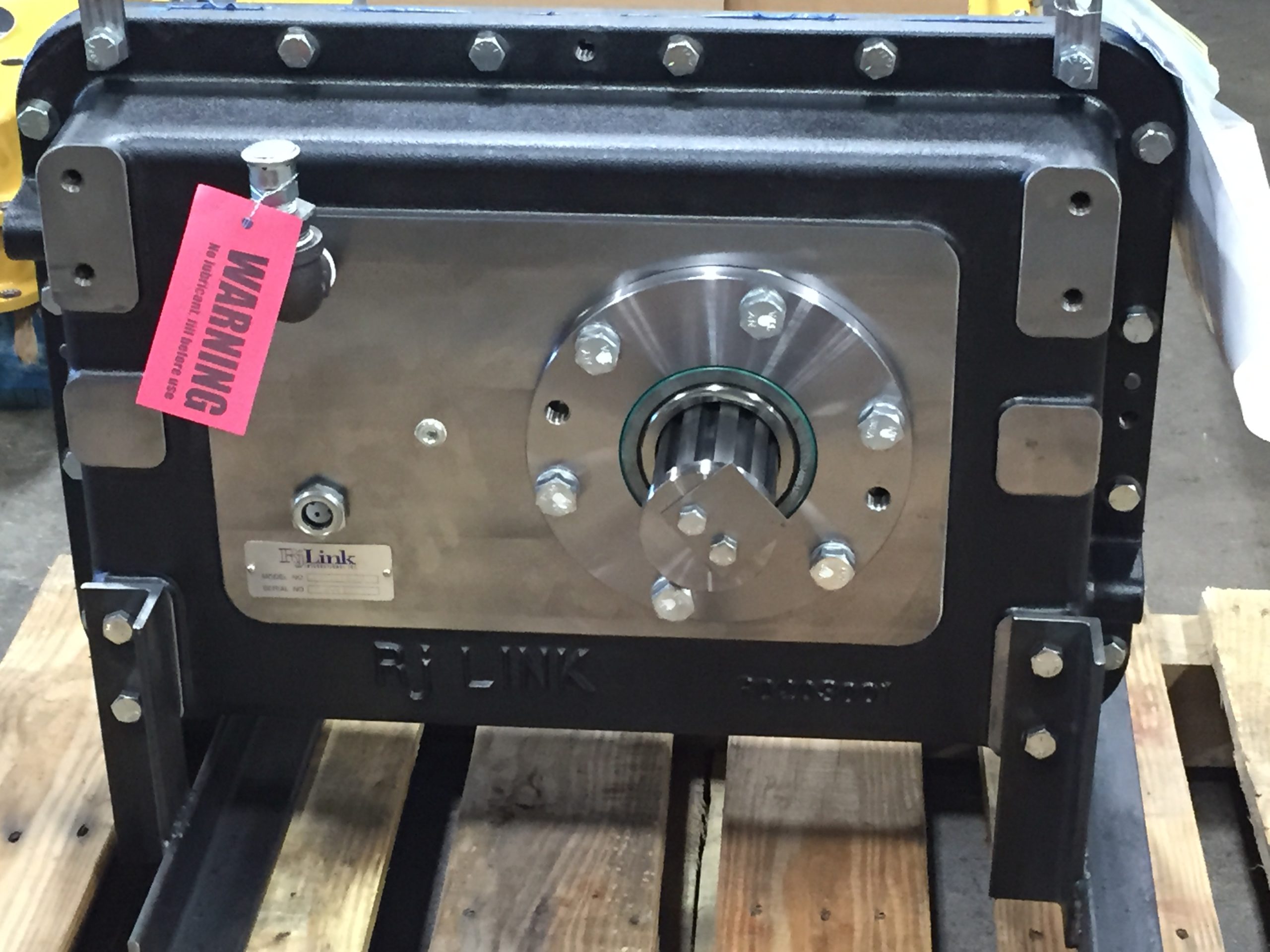

    Some features of the transfer case include a ductile iron housing with custom integrated mounting lugs, multiple outputs and a compact size.  See specifications below:

    • Ratios:  1:1
    • Rotation: Anti – Engine
    • Max Horsepower: 200 HP
    • Center Distance:  8″
    • Overall Size;  24″H x 14″W x 6″D
    • Weight:  250 lbs approx.
